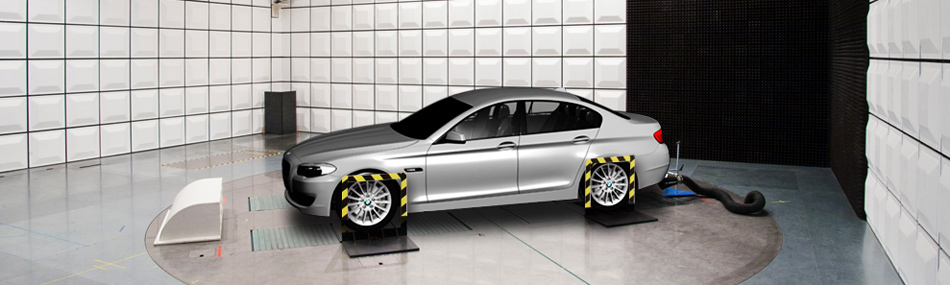

• Anechoic chamber equipped with chassis dynamo for EMC test of actual automobile that allows conducting EMC test in the state where all electronic devices of the automobile are functioning.

In EMI test, measurement can be fit at dark noise performance.

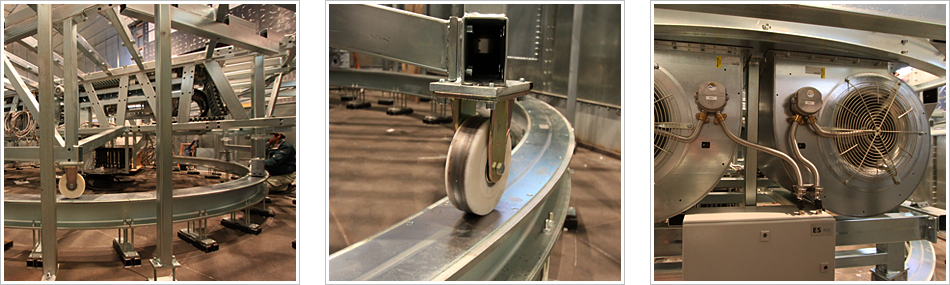

Chassis Dynamometer (CHDY）is the equipment of compliance with automobiles possible to simulate driving conditions on board. Installation can be done at anechoic chamber.
Transportation from compact vehicles to large passenger cars, compliance with various automobile measurement standards in emission test, measurement can be done at the standard of public announcement from Ministry of Land, Infrastructure, Transport and Tourism in fiscal year 2011.
We developed CHDY for anechoic chambers. It is superior to less electromagnetic from CHDY. Electromagnetic from automobile can measure exactly.

Standards Complied with ISO 11451 and SAE J551-5.

Standards Complied	CISPR/IEC61000-4-3/SAE J551/ISO11452
Size	W112.5 × Ｌ22.0 × H9.0 m
Measurement Distance	10m/3m
Electromagnetic Wave Absorber	RF044+RC absorber or ferrite tile + hollow pyramid electromagnetic wave absorber (RC series) <PFP30LC and RHFFP are partially used>
Site Attenuation	1GHz-18GHz
Main Shielded Door	W3.0 × H3.0 m
Turn Table	DT7000-4t-RPS φ7.0 4.0ton
